沸騰干燥制粒機

沸騰干燥制粒機

Fluid bed drying granulator

用途

該機是制藥、食品、化工、乳品等行業中普遍使用的工藝設備，它具有混合，制粒，干燥功能。

APPLICATION

The machine is a process machine widely applied in such industries as drug, food, chemical industry, dairy products, etc. It has such functions as mixing, granulating, drying, etc.

原理

空氣經凈化加熱后，由引風機從沸騰制粒干燥機下部吸入，穿過物料料倉的分布板，使物料粉末粒子或濕顆粒在原料容器中呈沸騰流化狀態，受到經過凈化后的加熱空氣預熱和混合，制粒時將粘合劑溶液霧化噴入，使若干粒子聚集成含有粘合劑的團粒，由于熱空氣對物料的不斷干燥，使團粒中水份蒸發，粘合劑凝固，此過程不斷重復進行，形成理想的、均勻的多微孔球狀顆粒。

沸騰制粒方法是噴霧技術和流化技術的綜合運用，它使傳統的混合、制粒、干燥過程在同一設備內一次完成，實現一步制粒。

PRINCIPLE

After purified and heated, the air from the induced draft fan is sucked in at the bottom of the fluid-bed granulating dryer, and then passes through the air flow distribution board of the material silo, so as to make the powder materials or wet granules under the boiling and fluidizing status in the raw material vessel. After the granules are preheated by the purified and heated air and mixed, the adhesive solution is atomized and sprayed during granulating to make several particles agglomerate into granules containing the adhesive. Because the materials are continuously dried by hot air, the moisture in the granules is evaporated, and the adhesive is solidified. This process will be carried out continuously and repetitively to form ideal and even micro-porous ball granules

The fluid-bed granulating method is a comprehensive applicatio atomizing technology and fluidizing technology. It completes the traditional mixing, granulating and drying process in a machine in one step to realize one-step granulating

特點

◆主機采用 SAR LABORTECNIO公司先進的設計理念，通過粉體造粒(混合、造粒、干燥)改善物料流動性；

◆整個操作都是在封閉的負壓系統內工作；

◆設備具備密閉取樣功能；

◆進風控制閥采用比例調節；

◆進風加熱系統可以選用電加熱或蒸汽加熱兩種方式；

◆整機配備先進的WIP清洗系統；

◆整機符合 FDA/CGMP生產要求；

◆該機可以根據用戶需要，提供抗10Bar憋爆設計。

FEATURES

The main machine adopts SAR LABORTECNIC's most advanced design concept to improve material flow through powder granulation(mixing, granulation, drying

The entire operation is in a closed vacuum system

The equipment has a closed sampling function

The inlet air control valve adopts proportional adjustment;

Inlet air heating system can choose electric heating or steam heating

The machine is equipped with advanced WIP cleaning system

The whole machine meets FDA/cGMP production requirements

The machine can provide anti-10Bar explosion design according to user needs

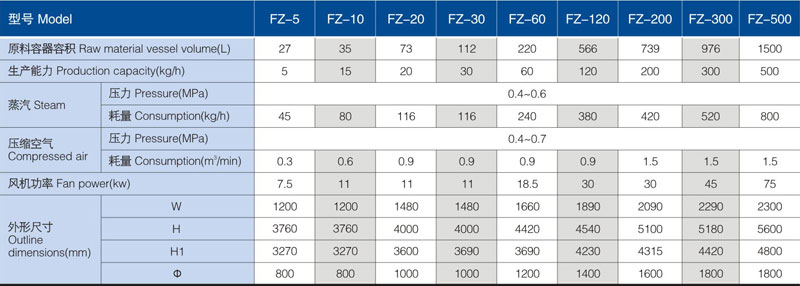

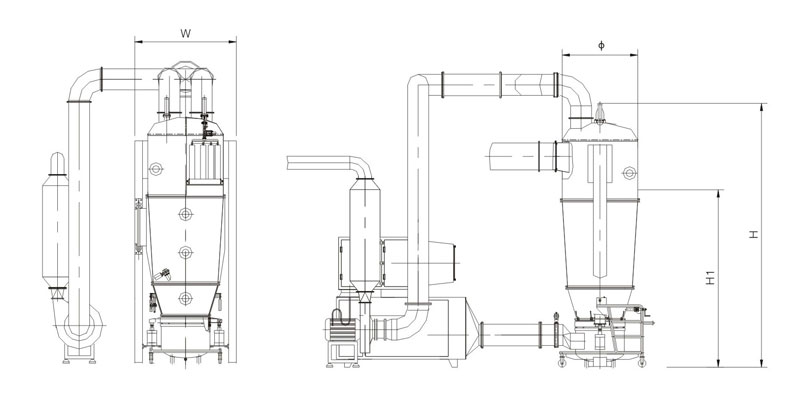

主要技術參數 MAIN TECHNICAL PARAMETERS

本公司可按用戶特殊要求定制生產，如有變動，恕不預先通知！

Our company can customize the products according to special requirements of users. you will not be notified of any changes in advance
