固定真空整粒機

固定真空整粒機

Vacuum mill cum sifter stationary

用途

該機主要用于制藥工業固體物料的轉送、加料。可與沸騰干燥機、沸騰制粒機配套使用，可直接將沸騰制粒機料車內的物料制成所需要的顆粒進入總混料桶，有效地杜絕了粉塵飛揚和交叉污染，減輕了勞動強度，提高了工作效率，同時該機在化工、食品等行業廣泛使用。

APPLICATION

The machine is mainly used for transferring and charging solid materials in the pharmaceutical industry. It can work with the boiling dryer, boiling granulator, etc. It can directly make materials inside the material cart of the boiling granulator into the required granules and put them into the mixing barrel. The machine effectively prevents dust and cross contamination, reduces labor intensity and enhances work efficiency. It is also widely used in such industries as chemical industry, food, etc

原理

該機主要由真空輸送系統、緩沖料倉、整粒系統、提升系統等部分組成，工作時，真空輸送器啟動，流化床料倉內的物料被吸送至緩沖倉內，緩沖倉內物料加滿后，打開出料蝶閥，物料進入整粒腔內進行整粒，整粒合格后的物料流出到料斗。

PRINCIPLE

The machine is mainly composed of vacuum conveying system buffering silo, granule sizing system and lifting system. When it works, the vacuum conveyor starts and the materials inside the fluidized bed silo are sucked to the buffering silo. After the buffering silo is filled with materials, start the discharging butter valve, and the materials will enter the granule sizing chamber for granule sizing. The conforming materials obtained after granule sizing will flow to the hopper

特點

◆機電液氣一體化設計，結構緊湊安全可靠，輸送物料速度快。

◆物料密閉輸送，無粉塵泄漏，實現密閉生產，完全符合GMP要求。

◆常拆卸部位采用快拆設計，方便拆卸清洗。內部無死角，易清洗，無物料殘留。

◆可采用PLC控制，實現自動化操作。

FEATURES

Electromechanical liquid-gas integrated design, compact andsafe, and fast in conveying materials

The material is sealed and transported, no dust leakage, and the closed production is realized, which fully meets the requirements of GMP

The frequently disassembled part adopts quick release design

which is convenient for disassembly and cleaning. There is no dead angle inside, easy to clean, no material residue

PLC control can be used to achieve automatic operation

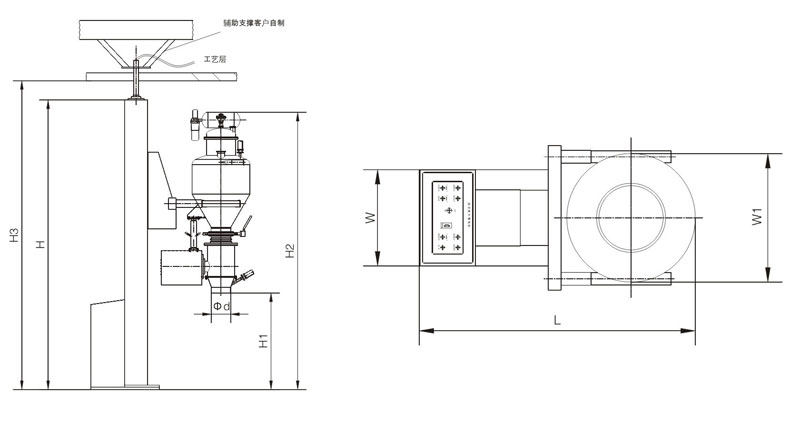

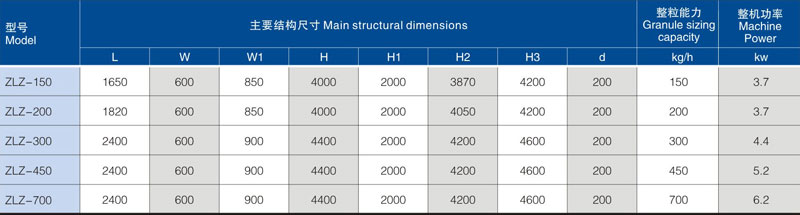

主要技術參數 MAIN TECHNICAL PARAMETERS

本公司可按用戶特殊要求定制生產，如有變動，恕不預先通知!

Our company can customize the products according to special requirements of users. you will not be notified of any changes in advance
