固定提升轉料整粒機

固定提升轉料整粒機

Pharma lifter, for FZ/FG bowl

用途

該機主要應用于制藥工業中將制粒后結團的顆粒，根據工藝要求整理出均勻的合格顆粒。同時在制藥、化工、食品等行業中廣泛使用。

APPLICATION

The machine is mainly used to sort out even and conforming granules according to process requirements from agglomerated granules after granulating in the pharmaceutical industry. It is also dely used in such industries as medicine, chemical industr food. etc

原理

提升翻轉整粒機有裝料位與整粒位：裝料位是將提升整粒機下降到定高度后翻轉180度，使整粒料斗與沸騰制粒料倉相對接并手動手輪固定緊固，然后上升適當高度后，退出沸騰料倉推車，將提升整粒機翻轉180度回到整粒料斗向上，再上升一定高度到與整粒后料斗相接位置進行整粒。

PRINCIPLE

There are loading position and granule sizing position in the lifting dry granulator. At the loading position, the lifting granule sizing machine is lowered to a certain height and turned for 180,So that the granule sizing hopper and fluid bed granulating silo are connected and tightened through the handwheel. After it is raised to an appropriate height, the fluid bed silo cart withdraws. The lifting granule sizing machine is turned for 180 and returns onto the granule sizing hopper, and then it rises to a certain height to connect with the granule sizing hopper for granule sizing maceutical industry. It is also dicine, chemical industry.

特點

該杋結構合理，性能穩定，操作方便，整機無死角，無外露螺釘。該機設有防誤操作裝置的出料蝶閥，拆卸方便，易于清洗，確保生產安全。整粒機可隨錐斗升降到任意工藝高度，方便與下一工序設備密閉對接，有效地控制粉塵與交叉污染，優化了生產工藝，完全符合藥品生產的GMP要求。

FEATURES

The machine has reasonable structure stable performance and convenient operation. The whole machine has no dead angle and no exposed screws. The machine is equipped with a discharge butterfly valve for preventing misoperation, which is easy to disassemble and easy to clean, ensuring production safety The granulator can be lifted to any process height with the cone bucket, which is convenient for sealing and docking with the next process equipment, effectively controlling dust and cross contamination, optimizing the production process and fully complying with the gmP requirements for pharmaceutical production

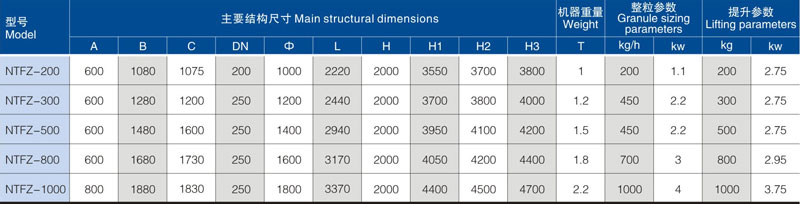

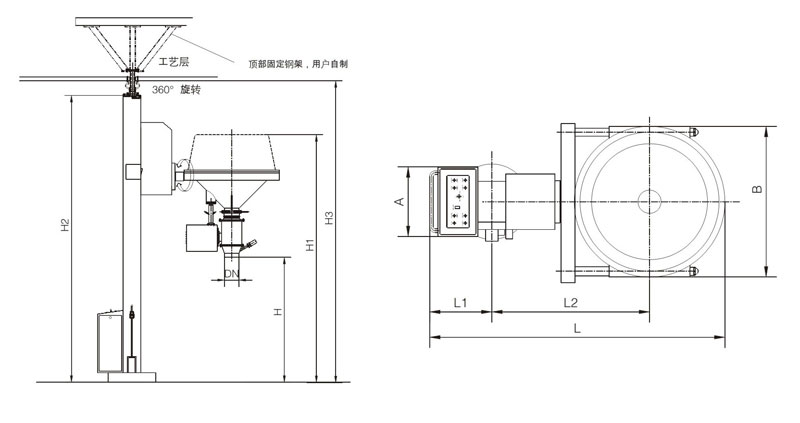

主要技術參數 MAIN TECHNICAL PARAMETERS

本公司可按用戶特殊要求定制生產，如有變動，恕不預先通知!

Our company can customize the products according to special requirements of users. you will not be notified of any changes in advance
